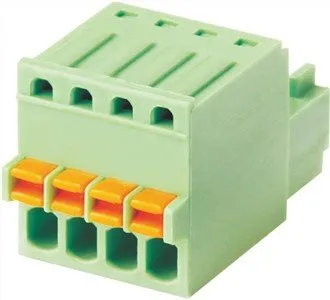

Shenzhen 2.5mm Pitch 6A 30V Power Blade Type Lithium Ion Battery Connector

We provide green 45 Degree 5 0mm Screwless Terminal Block, Terminal Block Header Left Side Connector 5 0mm Pitch, PCB Screw Right Angle Terminal Connector 7 62mm to our customers and actively respond to environmental changes and develop a circular economy. We adhere to the green and low-carbon strategy and strive to be a good promoter of green development. We now have established long-term, stable and good business relationships with many manufacturers and wholesalers around the world. Technology is the main productivity. The company attaches importance to technology and talents, and seeks breakthroughs through innovation. The company has continuously improved its scientific research level and strengthened its scientific research capabilities, and has achieved fruitful results, which has enhanced its stamina and vitality.

UL/CUL

Use Group B C D

Rate Voltage [V] 150 - -

Rated Current [A] 5 - -

Wire Range [AWG] 26~20

Dielectric Voltage-Withstand 1.3KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 100 160 320

Rated Current [A] 5 5 5

Impulse withstand voltage [KV] 1.5 2.5 2.5

Conductor cross section [mm²] 0.2~0.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Ni plated



Other Data

Pitch/Poles [mm]/[P] 2.54 / 2~24

Stripping Length [mm] 5~6

Operating temperature [℃] -40~+105



In order to enhance the competitiveness of our company, we have to continuously improve the quality of our Shenzhen 2.5mm Pitch 6A 30V Power Blade Type Lithium Ion Battery Connector. We actively create professional solutions for every customer, relying on excellent equipment quality and professional technical services. During the 10 years of operating, our company always try our best to bring consumption satisfaction for user, built a brand name for ourselves and a solid position in the international market with major partners come from many countries.
