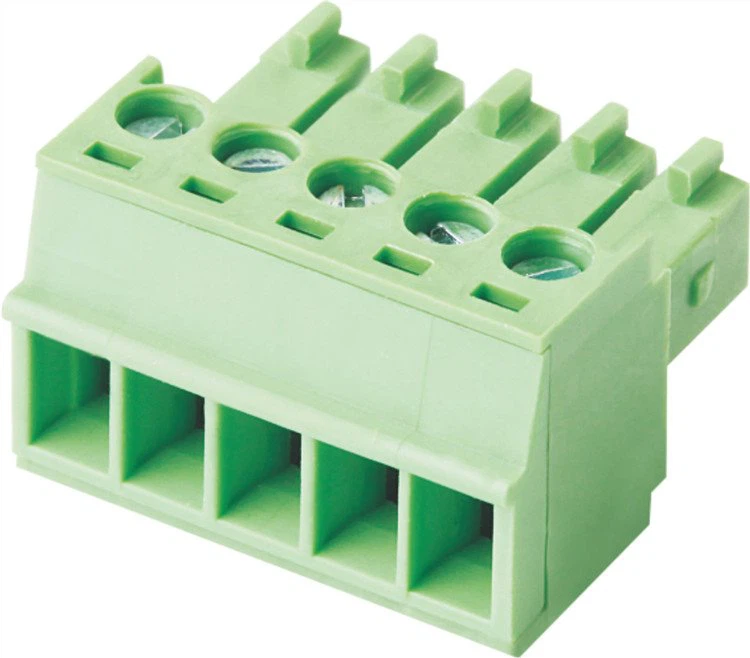

Plug PCB Terminal Blocks Male & Female Terminal Blocks

We believe that prolonged expression partnership is really a result of top of the range, value added support, rich encounter and personal contact for Terminal Block Header Horiz Pitch 7 62mm With Flange, High Temp Terminal Block Header Right Angle 5 08mm Closed End, Pcb Modular Terminal Block 5 0mm. Since its establishment, the company has won praise and affirmation from cooperative customers and the industry with its high-quality services and products. We secure cost advantages by establishing relatively stable relationships with our suppliers. The company pays close attention to the update of various industry standards and the release of new standards, completes the continuous update and optimization of products, so that the products are always in the leading position in the industry. Our products have established a certain reputation in the market, and the company's services have also been recognized by customers.



UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 8 - 8

Wire Range [AWG] 28~16

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 160 160 250

Rated Current [A] 7 7 7

Impulse withstand voltage [KV] 2.5 2.5 2.5

Conductor cross section [mm²] 0.5~1.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Ni plated



Other Data

Pitch/Poles [mm]/[P] 3.5,3.81 / 2~24

Stripping Length [mm] 6~7

Screw/Torque(Max)[N.m] M2 / 0.2

Operating temperature [℃] -40~+105



Our company with the work style of excellence, tireless, strive for the perfect spirit, to provide high-quality Plug PCB Terminal Blocks Male & Female Terminal Blocks to the majority of users, thoughtful services. Through our high quality products and services, we are able to obtain a good economic return, ensure the long-term development of the enterprise, and fulfill our obligations to the society, employees and shareholders. Business is about contributing to society, and with this in mind, we Putting our philosophy into practice, we continue to make efforts to improve our corporate value.
