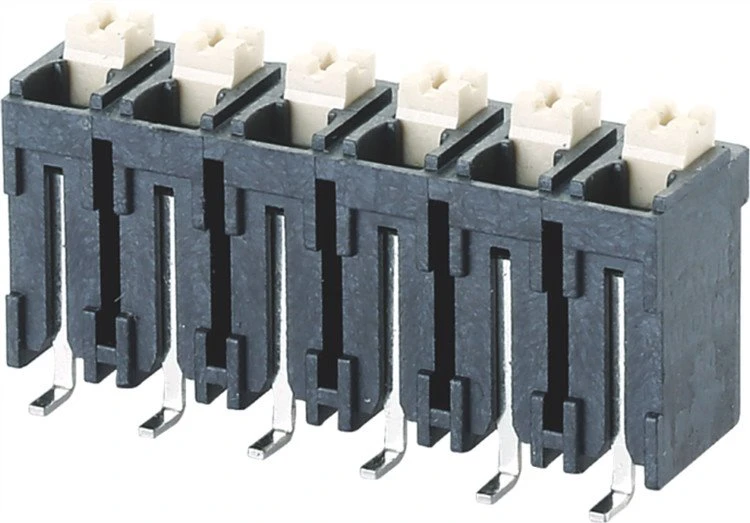

High Temp. Pitch 5.0mm Smd Vertical Connector

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 10 - 10

Wire Range [AWG] 24~16

Dielectric Voltage-Withstand 1.6KV

IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 250 320 500

Rated Current [A] 17.5 17.5 17.5

Impulse withstand voltage [KV] 4 4 4

Conductor cross section [mm²] 0.2~1.5

Material

Insulation Material LCP

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated

Other Data

Pitch/Poles [mm]/[P] 5.0 / 2~24

Stripping Length [mm] 7~8

Operating temperature [℃] -40~+130

Soldering temperature 285℃/ 10S

Pin dimensions [mm] 0.8*0.4
