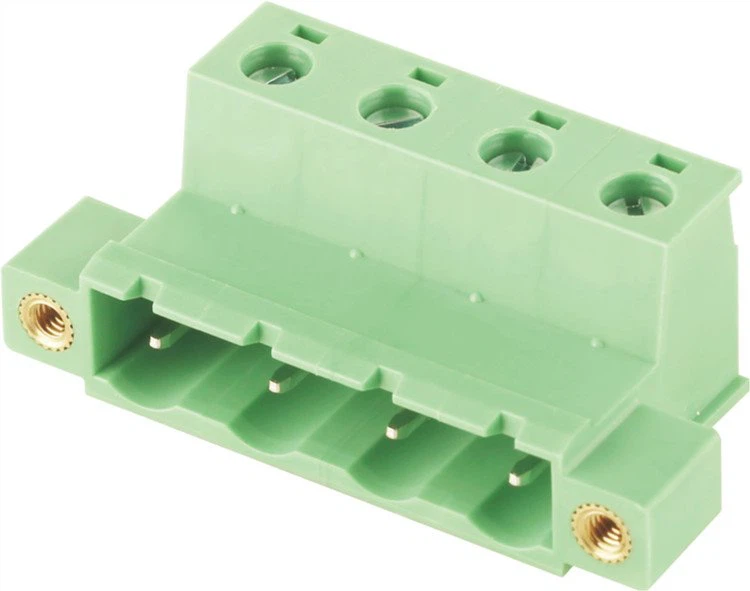

7.62mm Pitch Terminal Block

Right Angle Screw Female-male Plug

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 15 - 10

Wire Range [AWG] 28~12

Dielectric Voltage-Withstand 1.6KV

IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 400 630 1000

Rated Current [A] 12 12 12

Impulse withstand voltage [KV] 6 6 6

Conductor cross section [mm²] 0.2~2.5

Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated

Other Data

Pitch/Poles [mm]/[P] 7.62 / 2~24

Stripping Length [mm] 7~8

Screw/Torque(Max)[N.m] M3 / 0.5

Operating temperature [℃] -40~+105
