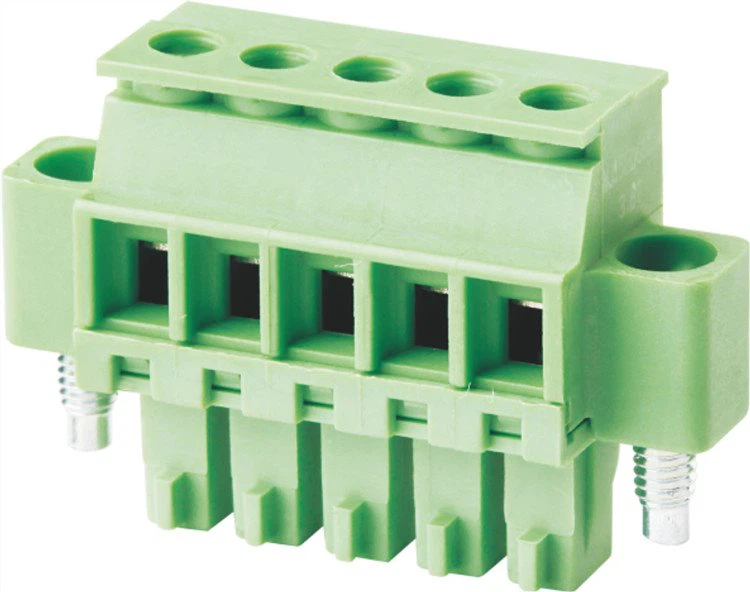

3.81mm Pitch Screw Female Connector Vertical with Flange



UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 8 - 8

Wire Range [AWG] 28~16

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 160 160 320

Rated Current [A] 7 7 7

Impulse withstand voltage [KV] 2.5 2.5 2.5

Conductor cross section [mm²] 0.2~1.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Ni plated



Other Data

Pitch/Poles [mm]/[P] 3.5,3.81 / 2~24

Stripping Length [mm] 6~7

Screw/Torque(Max)[N.m] M2 / 0.2

Operating temperature [℃] -40~+105
