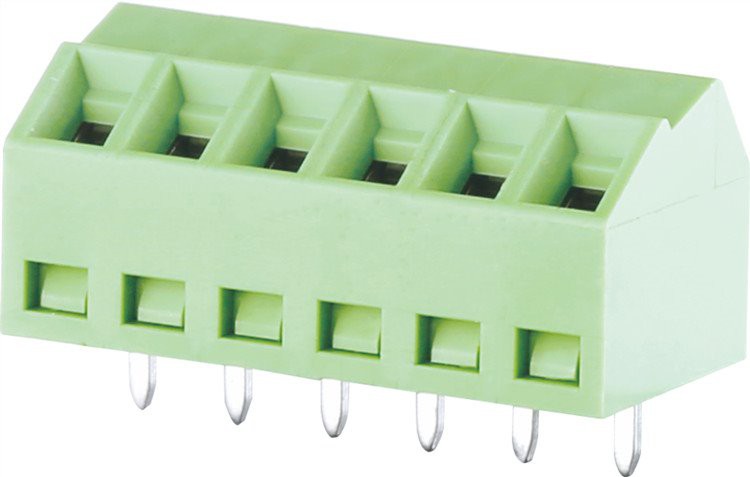

45 Degree PCB Screw Terminal Block 3.5mm

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 10 - 10

Wire Range [AWG] 26~16

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 160 200 400

Rated Current [A] 10 10 10

Impulse withstand voltage [KV] 2.5 2.5 2.5

Conductor cross section [mm²] 0.2~1.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 3.5,3.81 / 2~24

Stripping Length [mm] 5

Screw/Torque(Max)[N.m] M2 / 0.2

Operating temperature [℃] -40~+105

Soldering temperature 250℃/5S

Pin dimensions [mm] 0.5*0.8

PCB Hole Diameter [mm] Ø1.1
