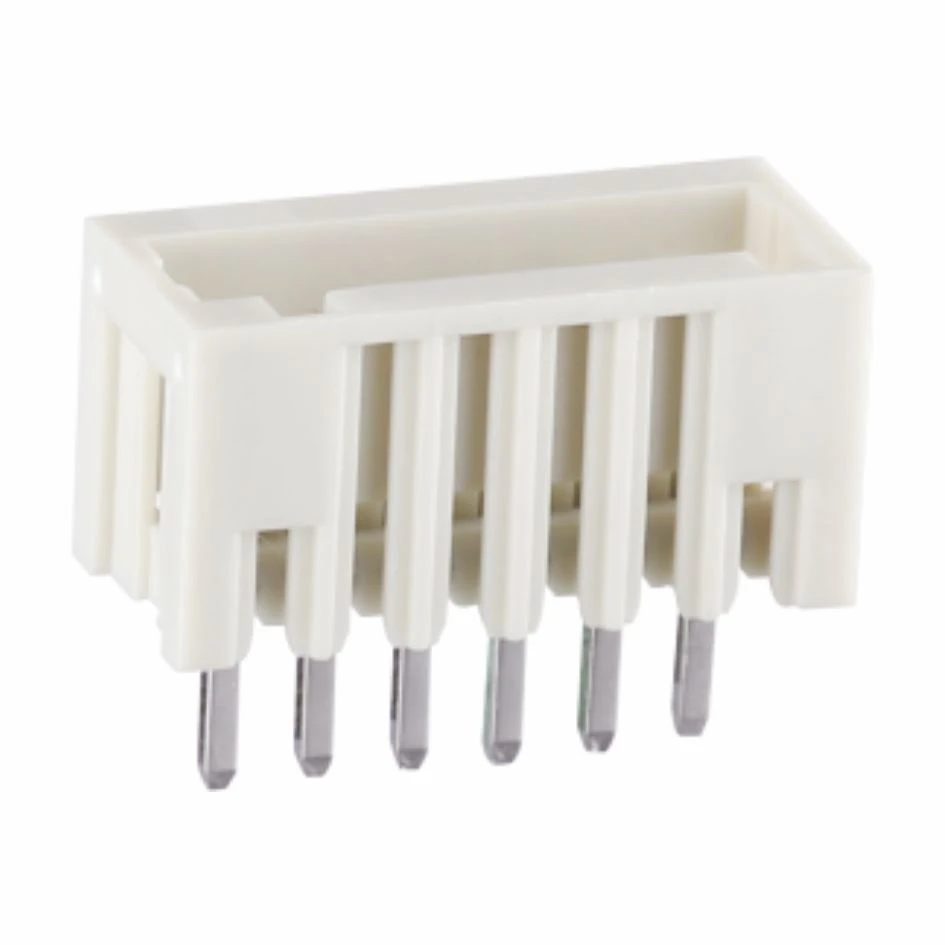

Vertical Male Connector 2.5mm

UL/CUL

Use Group B C D

Rate Voltage [V] 150 - 150

Rated Current [A] 4 - 4

Wire Range [AWG] /

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 80 160 320

Rated Current [A] 6 6 6

Impulse withstand voltage [KV] 2.5 2.5 2.5

Conductor cross section [mm²] /



Material

Insulation Material PA66

Flame relardant rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 2.5/2~12

Stripping Length [mm] /

Screw/Torque(Max)[N.m] /

Operating temperature [℃] -40~+105

Soldering temperature 260℃/5S

Pin dimensions [mm] 0.8*0.8

PCB Hole Diameter [mm] Ø1.4
