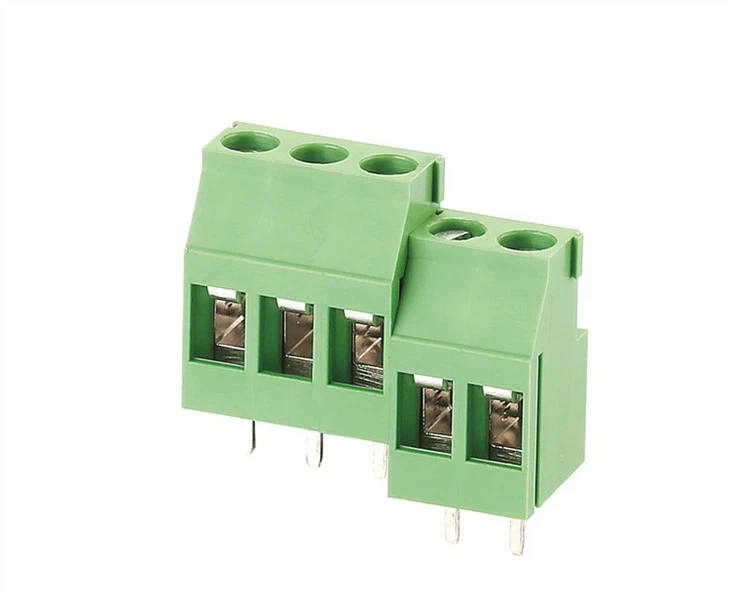

Rising Clamp Terminal Block for PCB Terminal (WJEK500B/508B)

We are committed to providing customers with high-quality services, high-precision Triple Row 5 0mm Spring Clamp Terminal Block Connector, High Temp Terminal Block Header Right Angle 5 08mm Closed End, Pcb Modular Right Angle Terminal Block 5 0mm and high-efficiency solutions. Our business philosophy is based on product application and thoughtful service in one. Advanced technology and innovative management, strong production base make us and users lay a good foundation for cooperation. High quality is our eternal pursuit, and our confidence in quality comes from all employees. We are enthusiastic about public welfare and hope to build a harmonious society and show a responsible, honest, green, safe and harmonious corporate image.

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 20 - 10

Wire Range [AWG] 26~12

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 250 400 630

Rated Current [A] 24 24 24

Impulse withstand voltage [KV] 4 4 4

Conductor cross section [mm²] 0.5~2.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 5.0,5.08/2~24

Stripping Length [mm] 6~7

Screw/Torque(Max)[N.m] M3 / 0.5

Operating temperature [℃] -40~+105

Soldering temperature 250℃/5S

Pin dimensions [mm] 0.8*1.0

PCB Hole Diameter [mm] Ø1.5



We are a newly rising star in the field of Rising Clamp Terminal Block for PCB Terminal (WJEK500B/508B), with rapid business development. Market demand is the development opportunity of the enterprise, and we are committed to the quality of the brand multi-grade and variety diversification. We insist on improving economic quality and efficiency as the center, and focus on safety, environmental protection and optimization of excess capacity.
