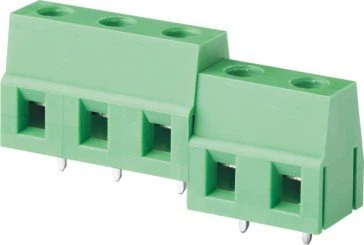

Pitch 5.0mm Horizontal Type PCB Terminal Block 2p 3p

As a leading supplier of Pcb Modular Right Angle Terminal Block 7 5mm, Vertical Female Pin Header 3 5mm Pitch Connector, 45 Degree PCB Screw Terminal Block 5 08mm, we always sincerely dealing with every client, our aim is to help our client to get more profits in cooperation with us. Our company adheres to the business philosophy of 'honesty and trustworthiness, continuous innovation, quality first, and service first'. With the spirit of technological innovation, global vision, and open thinking, we sincerely look forward to creating a better future with customers at home and abroad! We have the ability to provide customers with professional technology and solutions, timely ordering services and fast delivery services. We firmly believe that our products and solutions will make you happy.

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 16 - 10

Wire Range [AWG] 22~12

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 450 630 1000

Rated Current [A] 20 20 20

Impulse withstand voltage [KV] 6 6 6

Conductor cross section [mm²] 0.5~2.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 7.5,7.62/2~24

Stripping Length [mm] 6~7

Screw/Torque(Max)[N.m] M2.5/0.4

Operating temperature [℃] -40~+105

Soldering temperature 250℃/5S

Pin dimensions [mm] 0.8*0.9

PCB Hole Diameter [mm] Ø1.5



Our Pitch 5.0mm Horizontal Type PCB Terminal Block 2p 3p with superior quality and good service, sold at home and abroad, favored by consumers. We create surprises for our customers in many ways: products, efficiency, service, etc. We are taking the opportunity of deepening reform to put a longer-term vision on development and a more solid footing on struggle.
