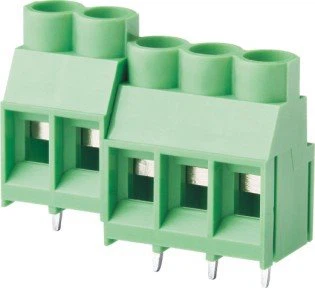

PCB Screw Terminal Block, Wire Connector, Wj635, Pitch 6.35mm

We persistently pursue better quality, and use our unremitting efforts to become a reliable Double Row Right Angle Male Pluggable Connector 3 5mm With Flange, Vertical Male Pluggable Terminal 5 08mm Pitch With Flange, Right Angle Male Pluggable Connector 5 08mm Pitch Closed End partner for customers! The market scope of our company expands from one country to regional market and international market, resulting in four adjustment modes, namely market adjustment, national adjustment, regional adjustment and international adjustment. We always regard quality as the foundation of our lives, advocate continuous innovation and change, promote the stable development of the company through continuous team learning and collaboration, and always maintain a high-quality corporate image. We constantly make achievements and achievements, and contribute talents and strength to the company's more lasting benefits.

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 30 - 10

Wire Range [AWG] 26~10

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 400 630 1000

Rated Current [A] 32 32 32

Impulse withstand voltage [KV] 6 6 6

Conductor cross section [mm²] 0.5~4.0



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 6.35 / 2~24

Stripping Length [mm] 6~7

Screw/Torque(Max)[N.m] M3 / 0.5

Operating temperature [℃] -40~+105

Soldering temperature 250℃/ 5S

Pin dimensions [mm] 0.8*1.0

PCB Hole Diameter [mm] Ø1.5



Our PCB Screw Terminal Block, Wire Connector, Wj635, Pitch 6.35mm has earned the trust and cooperation of customers all over the world because of its low price, high efficiency and reliable quality. We are still developing, and we need a team that is willing to work together and we refuse to have only young people who are passionate and not practical! We carry out innovation and research of new technology from our own technical needs.
