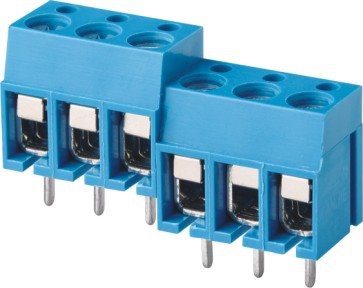

PCB Screw Terminal Block Mu1.5h2l5.0 5.0mm Pitch

Our continuous investment in innovation provides a strong guarantee for the company to grasp consumer trends and lead the direction of High Temp. Double Row Terminal Block Header Right Angle 5.0mm, Vertical Female Pin Header 3.5mm Pitch Connector, 3 Pin Terminal Block 5.0mm industry development. We have never slackened in the slightest, and have always interpreted the corporate philosophy of green environmental protection and beyond innovation with gratitude and professionalism. 'Take quality as life, and seek development with innovation' is our unwavering belief, and 'honesty and trustworthiness, service with heart' is our firm promise. We look forward to working with new and old customers and friends from all walks of life to create a brilliant tomorrow! We provide high-quality, professional products and services to our customers, create reasonable and sustainable investment returns for our shareholders, and build a solid and harmonious career development platform for our employees. We face the market, serve users, vigorously promote the organic combination of science and technology and productivity, and form a one-stop service system of research and development, design, manufacturing and installation.

UL/CUL

Use Group B C D

Rate Voltage [V] 250 - 250

Rated Current [A] 16 - 10

Wire Range [AWG] 22~14

Dielectric Voltage-Withstand 1.5KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 250 400 630

Rated Current [A] 24 24 24

Impulse withstand voltage [KV] 4 4 4

Conductor cross section [mm²] 0.5~2.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 5.0/2~24

Stripping Length [mm] 5~6

Screw/Torque(Max)[N.m] M2.5 / 0.4

Operating temperature [℃] -40~+105

Soldering temperature 250℃/ 5S

Pin dimensions [mm] 0.6*1.1

PCB Hole Diameter [mm] Ø1.5



Since the establishment of the company, we continue to update equipment, improve production technology, adhere to high starting point and high standards, so that the technical indicators of our products have always been ahead of the PCB Screw Terminal Block Mu1.5h2l5.0 5.0mm Pitch industry. Please feel free to contact us if you are interested. We are sincerely on the lookout ahead to cooperate with buyers everywhere in the entire world. We are well-known for our high-quality guaranteed products in the market, which are sold at home and abroad.
