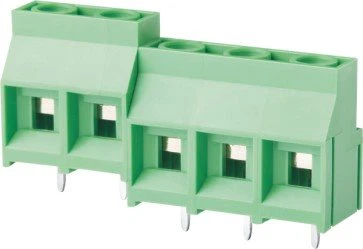

9.5mm Connectors Barrier Terminal Block Double Rows

We have been wholeheartedly devoted to the technological promotion, cultivation of R&D team, and development of new process. Our vision is achieve the goal of top global Terminal Block Header Right Angle Pitch 10 16mm With Flange, Euro PCB Screw Side Through Terminal Block 7 5mm, Right Angle High Temperature 3 5mm Spring Connector manufacturer. Now now we have recognized steady and long organization relationships with customers from all over the world. Our business philosophy includes honesty, fairness, steadiness and creativity. Our employees are constantly innovative and good at using new ideas and new methods to enhance their work. With rich industry experience, professional service team, convenient service platform and good shareholder resources, we can provide customers with professional, convenient and efficient one-stop solutions.

UL/CUL

Use Group B C D

Rate Voltage [V] 300 300 300

Rated Current [A] 30 30 10

Wire Range [AWG] 26~10

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 630 1000 1000

Rated Current [A] 32 32 32

Impulse withstand voltage [KV] 8 8 8

Conductor cross section [mm²] 0.5~4.0



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Sn plated



Other Data

Pitch/Poles [mm]/[P] 9.5 / 2~24

Stripping Length [mm] 6~7

Screw/Torque(Max)[N.m] M3 / 0.5

Operating temperature [℃] -40~+105

Soldering temperature 250℃/ 5S

Pin dimensions [mm] 0.8*1.0

PCB Hole Diameter [mm] Ø1.5



As a leader in the industry, our business principles and business behaviors will be recognized and respected by our peers, and we believe that we can make the 9.5mm Connectors Barrier Terminal Block Double Rows market play its maximum potential. We actively develop the market, constantly carry out product innovation, combined with the market to meet customer needs. Our business tenet is loyalty and dedication, love and dedication, optimistic and enterprising, and abiding by laws and trustworthiness.
