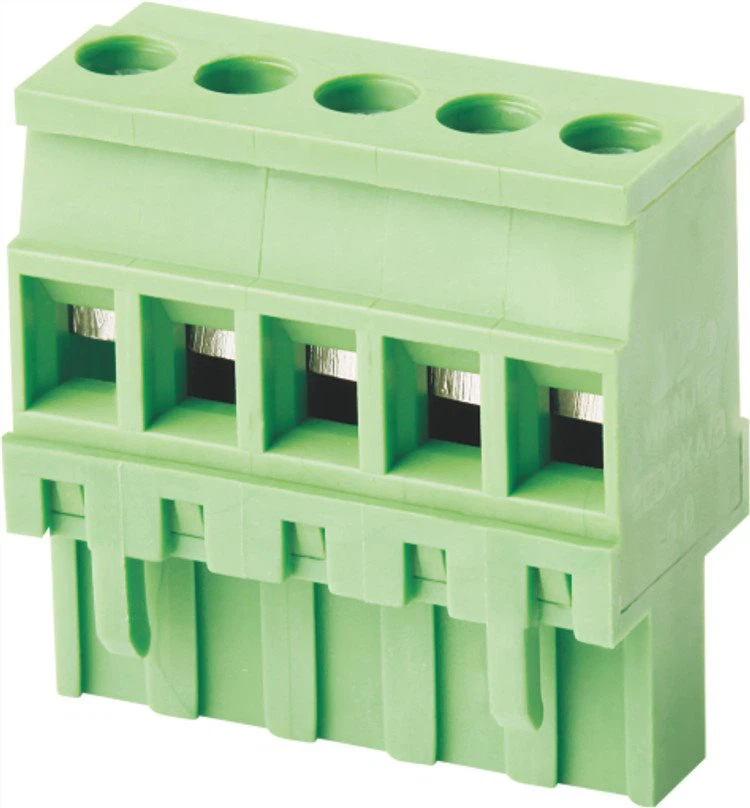

5.08mm Pitch Wire to Wire Panel Mounted Through Wall Pluggable Type Wire Terminal

In order to seek greater development, our company does not focus on the existing Charging Equipment Terminal Block 10 0mm, Din Rail Mounting Vertical 5 08mm Pitch Connector With Flange, 2 54mm Screwless Terminal Connector With Button market, but actively explore new markets. We rely on excellent technicians and professional engineers to conduct technical communication on site for various filling requirements to formulate corresponding solutions, are responsible for technical training, provide equipment maintenance and provide spare parts and corresponding after-sales service. Quality is the foundation of the company's survival and development and the core of ensuring product quality is technology. We will continue to forge ahead, take the various needs of customers as the center of business activities, develop and manufacture more and better products to serve the majority of users. We are a team that is sincere and united, striving for a common goal and a common vision.



UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 15 - 10

Wire Range [AWG] 28~12

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 250 320 630

Rated Current [A] 12 12 12

Impulse withstand voltage [KV] 4 4 4

Conductor cross section [mm²] 0.2~2.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Ni plated



Other Data

Pitch/Poles [mm]/[P] 5.0,5.08 / 2~24

Stripping Length [mm] 7~8

Screw/Torque(Max)[N.m] M3 / 0.5

Operating temperature [℃] -40~+105



In the production process of 5.08mm Pitch Wire to Wire Panel Mounted Through Wall Pluggable Type Wire Terminal, strict process control and quality inspection system are implemented. We will uphold the business philosophy of 'continuous innovation and maximize customer value' to provide customers with quality products and services. In the internal and external competition, enterprises should not only deal with the symbiotic relationship with employees, but also deal with the harmonious and win-win relationship with competitors.
