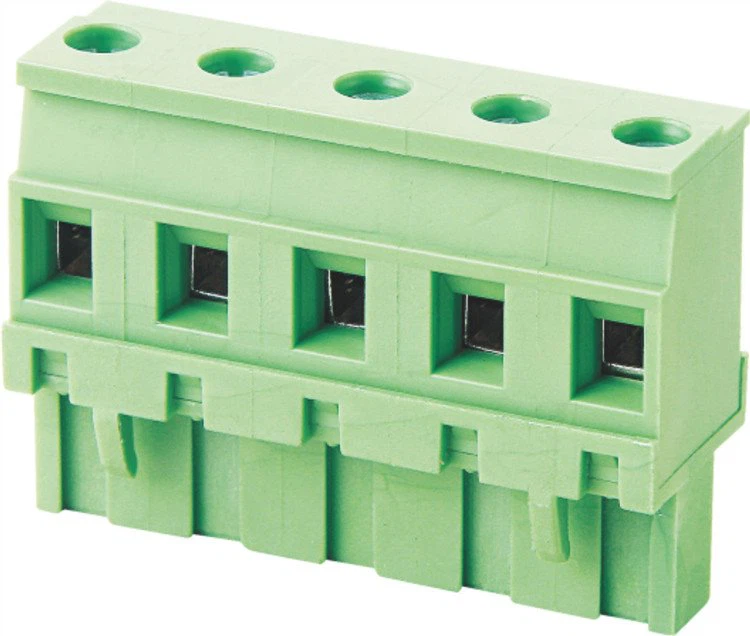

25c-08pin Barrier Terminal Block7.62mm Pitch PCB Type Black Cover for Power 20A

In the prescribed time, to provide quality 7 5mm Pitch Terminal Block, Vertical Male Pluggable Connector 5 08mm Pitch Closed End, High Temp Double Level Terminal Block Vertical 5 0mm and services, is our solemn commitment. Economy is the Lighthouse of an enterprise, innovation is the inexhaustible power of enterprise development, and economic management is the soul of enterprise development. Our company is a research, development, production, sales, trade as one, to meet market demand for new high-tech enterprises.

Vertical Terminal Block

UL/CUL

Use Group B C D

Rate Voltage [V] 300 - 300

Rated Current [A] 15 - 10

Wire Range [AWG] 28~12

Dielectric Voltage-Withstand 1.6KV



IEC

Overvoltage Category III III II

Contamination Class 3 2 2

Rated Voltage [V] 500 630 1000

Rated Current [A] 12 12 12

Impulse withstand voltage [KV] 6 6 6

Conductor cross section [mm²] 0.2~2.5



Material

Insulation Material PA66

Flammability rating UL94V-0

Conductor Material Copper alloy

Plating of conductor surface Ni plated



Other Data

Pitch/Poles [mm]/[P] 7.5,7.62 / 2~24

Stripping Length [mm] 7~8

Screw/Torque(Max)[N.m] M3 / 0.5

Operating temperature [℃] -40~+105



We believe that long term partnership is a result of high quality, value added service, rich experience and personal contact for 25c-08pin Barrier Terminal Block7.62mm Pitch PCB Type Black Cover for Power 20A. Self-confidence makes us more confident in this environment where competition and development coexist, and opportunities and challenges coexist, and hard work makes us learn to be down-to-earth and relentless in pursuit. In terms of talent management, we always adhere to the principles of fairness, fairness and openness.
