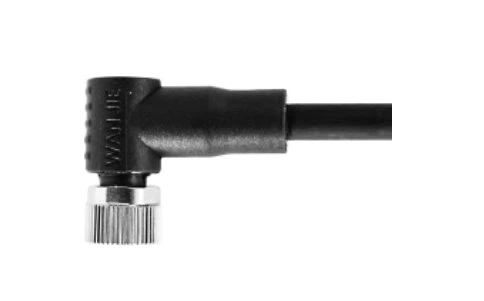

M8 Female Right Angle UnShield A-Coding 3PIN PUR 3.0M M8X1.0

Connector Series:M8

Gender: Female

Coding: A, B

Locking Type: Fix Screw

Mounting Type: Angled

Part No：M08-A03-RA0-F02-BCR-300N

X:A Coding

**：03Pin

RA0:0=Unshielded,2=Full Shield,1=Ground

BCC=Cable Jacket PVC(For Molded Cable)

BCR=Cable Jacket PUR(For Molded Cable)

XXX:050=0.5M, 100=1M, 10M=10M...(Length)



Technical Data

Standard: IEC61076-2-104

Ambient Temperatur: -25℃~+80℃

Insulation Resistance :≥100MΩ

Contact Resistance :≤5mΩ

IP Class: IP67

Mating Endurance: >100 Mating Cycles



Material Data

Connector Carriers: PA

Connector Contacts: Copper Alloy With Gold Plated

Connector Nut/Screw: Copper Alloy With Nickel Plated

Connector Overmold: TPU

Seal/O-Ring: FKM

Shielding: Unshielded/Shielded



Electrical Data & Mechanical Date

Contacts Pin: 3Pins

Rated Current: 3A

Voltage AC/DC: 50V/60V

Wire Range AWG/mm²: 24 / 0.25
